KIESEL impeller pumps
KIESEL impeller pumps are self-priming rotary pumps. They combine the features of a rotary pump and a positive displacement pump in one. The principle of operation is very simple. The main element of the pump is a flexible wheel (impeller) made of an elastomeric material called neoprene. The individual wings of the impeller are strongly curved, due to rotation, against an eccentric plate.
On the pumped side, the wings are spread apart due to residual stresses. The suction area increases. A vacuum develops, so that the pump fills itself.
On the pressure side, the wings are squeezed together. The gaps are getting smaller and smaller and are emptying out.
Functional principle of impeller pumps
The advantages of KIESEL impeller pumps:
- All pump parts are made of stainless steel, polished material.
- Pumping with virtually no pulsation
- Quick disassembly
- Easy to clean
- Compact design, low weight
- Self-priming Ws at 5 m.
- Pressure up to 5 bar
- Liquids with seeds, beer wort, stems are pumped without any problems
- Easy adjustment thanks to By-pass
- Motor with 2 speeds or variable speeds available
- Flow rate from 1 to 30 m³/h

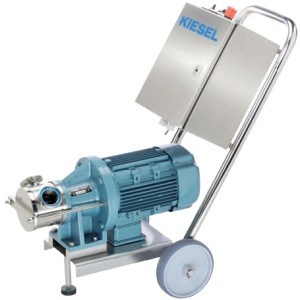

Impeller pumps are available in portable models (up to IP 03) and mobile models.
All parts of the pump that come into contact with the working fluid are made of stainless steel, number 1.4301/304, electrolytically polished.
As standard, the pumps can be supplied with or without bypass.
The pumps are equipped with such motors:
- AC motor 1450 minutes -1
- Rotary current motor 1450 min-1
- Polar reversing motor 700/1400 min-1
- Variable speed motor 200-1400 minutes-1 variable
- Frequency approx. 150-1500 minutes-1
| Pump type: | ||||
| Flow rate (l/h) | Pump type
| Power(kW) | RPM(min-1) | Weight (kg) |
| UP TO 1.000 | IP 01 without Bypass | 0,25 kw, 220 V, 1 Phase | 1450 | 8 |
| UP TO 2.500 | IP 02 without Bypass IP 02 with Bypass | 230/400 V, 0,55 kW 230/400 V, 0,55 kW | 1450 1450 | 12 13.5 |
| UP TO 5.000 | IP 03 | 230/400 V, 0,75 kW 230 V, 1 Phase | 1450 1450 150-1400 150-1400 | 14 14 28 25 |
| UP TO 10.000 | IP 10 | 230/400 V, 1,5 kW 1,0/1,9 kW
| 1450 700/1400 200-1400 300-1400 | 38 38 |
| UP TO 15.000 | IP 15 | 230/400 V, 2,2 kW 400 V, 1,0/2,5 kW | 1450 700/1400 | 40 40 |
| UP TO 20.000 | IP 20 | 230/400 V, 3 kW | 1450 | 75 |
| UP TO 28.000 | IP 30 | 400 V, 5,5 kW | 1450 | 96 |
